PowerMon Titrometer (滴定儀)

Product Type :  ON-LINE ANALYZER

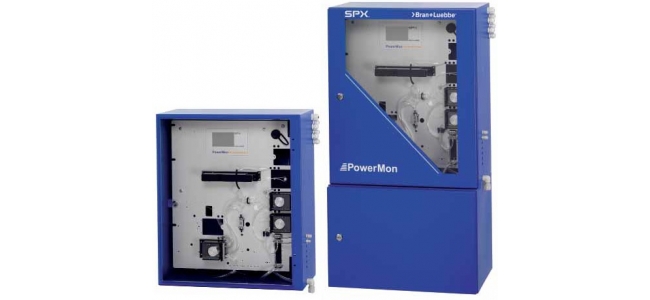

PowerMon Titrometer - Online Measuring Instrument

        The PowerMon Titrometer is a versatile applicable online measuring instrument. It guarantees a permanent optimal water quality by the continuous supervision in the chemical industry, water and waste water treatment, in power stations and the paper industry.

        Apart from higher precision and shortening of the measuring cycles the PowerMon offers a special highlight: For the measurement of most diverse parameters (e.g. oxygen, pH, redox, conductivity etc.) the connection of various sensors is possible!

        For the individual sensors the PowerMon automatically takes over the functions of a transducer. It is also possible to set the separate results against each other.

        A remote supervision enables the permanent control of the correct function of your plant. The highest possible data transfer over the interfaces, as well as the operation of the PowerMon via the touch screen user interface ensures an easy and user friendly operation.

        The compact and modular design of the PowerMon can contain up to six on-line measuring points in one device and enables a space-saving and economic operation.

< DOWNLOAD >

download: BL_PowerMon_Titrometer_166_01_GB.pdf

< Technical Data >

Measuring methods : cyclic, volumetric

Measuring cycle : typ. 5-12 min.

Measuring range :

m- and p-value

0-0,1 to 0-100 mmol/l

Hardness : 0 - 0,025 to 0 - 50 mmol/l

Chloride : 0 - 10 to 0 - 100 mg/l

Further parameters and measuring ranges on request.

Precision

3% or better

Drift

typ. &lt;0.5% MBE

Reagent supply : min. 3 weeks , Number of measuring points , max. 6

Output signal : 0/4-20 mA , max. load 500 OHM

characteristic curve: linear/logarithmic , galvanically isolated

Interfaces : USB / Ethernet

Option:

modem: analog, GSM, ISDN, UMTS

Profibus DP, Modbus RTU

Relay contacts : 4/12 potential free contacts free allocable (e.g. alarm contact)

Digital inputs : 4/12 e.g. activating and deactivating of measuring points, system control

Sample : pressure-free

Temperature : 15 - 45°C (288 - 308 K)

Flow : 3 – 10 l/h

free from suspended

matter and oil

Connection : tube, flexible (ID 1.5 - 3 mm)

Drain : pressure-free tube, flexible (ID 10 mm)

Power supply : 85…264 VAC at 47…63 Hz

Power consumption : max. 50 VA

Environmental temperature : 15 - 35°C (288 - 308 K)

Installation :

wall-mounted

Protection class

(EN 60529)

IP 65 ( electronics )

IP 54 ( with housing )

IP 21 ( with jacket )

Weight : housing with reagent cabinet , 53 - 60 kg without reagents

Dimensions (height x width x depth) :

Housing: 700x600x320 mm , with reagent cabinet: 1100x600x354 mm
