PowerMon Natriometer (鈉度計)

Product Type :  ON-LINE ANALYZER

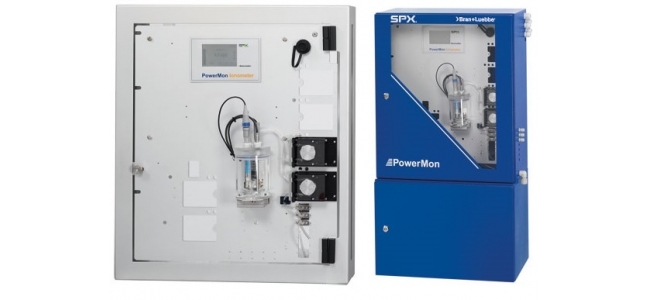

PowerMon Natriometer -Online Measuring Instrument

        The PowerMon Natriometer is a versatile applicable online measuring instrument. It guarantees a permanent optimal water quality by the continuous supervision of the sodium content in ultra pure water or during water treatments.

        Apart from higher precision and shortening of the measuring cycles the PowerMon offers a special highlight: For the measurement of most diverse parameters (e.g. oxygen, pH, redox, conductivity etc.) the connection of various sensors is possible!

        For the individual sensors the PowerMon automatically takes over the functions of the transducers. It is also possible to set the separate results against each other.

        A remote supervision enables the permanent control of the correct function of your plant. The highest possible data transfer over the interfaces, as well as the operation of the PowerMon via the touch screen user interface ensures an easy and user friendly operation.

< DOWNLOAD >

download: BL_PowerMon_Natriometer_164_01_GB.pdf

< Technical Data >

Measuring methods :Potentriometric

Measuring cycle : at least 6 min.

Measuring range in mg/l

Na+0-0.001 to 0-1.000 mg/l

Precision : typ. &lt;5% of measuring range (end of value)

Drift : typ. &lt;1% of measuring range (end of value)

Reagent supply : for approx. 8 weeks

Number of measuring points : max. 6

Output signal : 0/4-20 mA  max. load 500 OHM

characteristic curve:

linear/logarithmic

galvanically isolated

Interfaces : USB / Ethernet

Option:

modem: analog, GSM, ISDN, UMTS

Profibus DP, Modbus RTU

Relay contacts

4/12 potential free contacts

free allocable

(e.g. alarm contact)

Digital inputs

4/12 e.g. activating and deactivating of measuring points, system control

Sample : pressure-free

Temperature : 15 - 45°C (288 - 308 K)

Flow : 3 – 10 l/h free from suspended matter and oil

Connection : tube, flexible (ID 1.5 - 3 mm)

Drain :

pressure-free

tube, flexible

(ID 10 mm)

Power supply : 85…264 VAC at 47…63 Hz

Power consumption : ~ 42 VA (max. 90 VA)

Environmental temperature : 15 - 35°C (288 - 308 K)

Installation

wall-mounted

Protection class (EN 60529)

IP 65 ( electronics )

IP 54 ( with housing )

IP 21 ( with jacket )

Weight : housing with reagent cabinet

53 - 60 kg without reagents

Dimensions (height x width x depth) :

Housing: 700x600x320 mm , with reagent cabinet: 1100x600x354 mm
