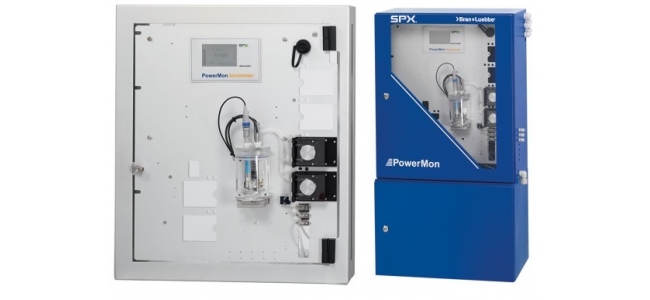

PowerMon Ionometer (離子計)

Product Type :  ON-LINE ANALYZER

PowerMon Ionometer - Online Measuring Instrument

        The PowerMon Ionometer is a versatile applicable on-line measuring instrument, which is used for the monitoring of the legally prescribed limit value in the outlet of municipal and industrial purification plants.

        Apart from higher precision and shortening of the measuring cycles the PowerMon offers a special highlight: For the measurement of most diverse parameters (e.g. oxygen, pH, redox, conductivity etc.) the connection of various sensors is possible!

        For the individual sensors the PowerMon automatically takes over the functions of a transducer. It is also possible to set the separate results against each other.

        A remote supervision enables the permanent control of the correct function of your plant. The highest possible data transfer over the interfaces, as well as the operation of the PowerMon via the touch screen user interface ensures an easy and user friendly operation.

        The compact and modular design of the PowerMon can contain up to six on-line measuring points in one device and enables a space-saving and economic operation.

< DOWNLOAD >

download: BL_PowerMon_Ionometer_162_01_GB.pdf

< Technical Data >

Measuring method - Potentiometric

Measuring cycle - at least 6 min.

Measuring range in mg/l:

NO 3- 0 - 1 bis 0 - 500 mg N/l

F - 0 - 1 bis 0 - 1.000 mg/l

Cl - 0 - 0.1 bis 0 - 10.000 mg/l

NH 4+ 0 - 2,5 bis 0 - 1.000 mg N/l

K + 0 - 1 bis 0 - 10.000 mg/l

Further parameters and measuring ranges on request.

Precision: typ. &lt; 5% of measuring range (end of value)

Drift: typ. &lt; 1% of measuring range (end of value)

Reagent supply for approx. 3 weeks

Number of measuring points - max. 6

Output signal: 0/4-20 mA , max. load 500 OHM

characteristic curve:

linear/logarithmic

galvanically isolated

Interfaces: USB / Ethernet

Option: modem: analog, GSM, ISDN, UMTS

Profibus DP, Modbus RTU

Relay contacts: 4/12 potential free contacts - free allocable (e.g. alarm contact)

Digital inputs: 4/12 e.g. activating and deactivating of measuring points, system control

Sample: pressure-free

Temperature: 15 - 45°C (288 - 308 K)

Flow: 3 – 10 l/h free from suspended matter and oil

Connection: tube, flexible (ID 1.5 - 3 mm)

Drain: pressure-free tube, flexible (ID 10 mm)

Power supply: 85…264 VAC at 47…63 Hz

Power consumption: ~ 42 VA (max. 90V VA)

Environmental temperature: 15 - 35°C (288 - 308 K)

Installation: wall-mounted

Protection class (EN 60529)

IP 65 ( electronics )

IP 54 ( with housing )

IP 21 ( with jacket )

Weight: Housing with reagent cabinet 53 - 60 kg without reagents

Dimensions: (height x width x depth)

Housing: 700x600x320 mm , with reagent cabinet: 1100x600x354 mm
