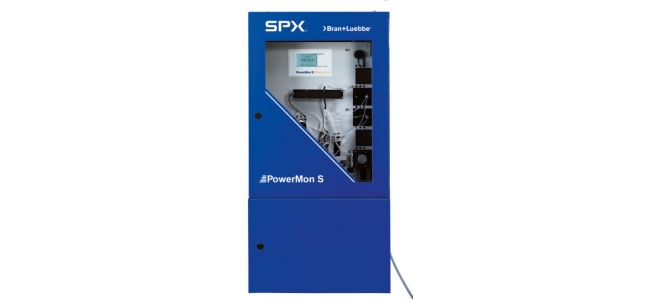

On-line Analyzers (線上分析儀)

Product Type :  ON-LINE ANALYZER

on-line analyzers for a various applications for water and sewage treatment

On-line analyzers, applications for water preparation, wastewater treatment, boiler feed water and ultra-pure water have been continuously improved and the field of analysis has extended into chemical processes.

< DOWNLOAD >

download: BL_On_Line_Analyzers_160_01_GB_tcm11-7882.pdf

< DIMENSIONS >

Analyzers in Process and Waste Water - Applications

Parameter* Minimum Range* Maximum Range* Bran+Luebbe Monitor Application
Acid as HCl 0 - 20 g/l 0 - 100 g/l PowerMon Titrometer Etching

Ammonium NH4+ 0-0,5 mg/l 0-1000 mg/l PowerMon Ionometer
PowerMon Kolorimeter Sewage treatment
Leachate

Chrom Cr6+ 0 - 0,1 mg/l 0 – 5 mg/l PowerMon Kolorimeter Tanneries
Electroplating

Cobalt Co 0 - 1 mg/l 0 - 10 mg/l PowerMon Kolorimeter Heavy metal industry

Copper Cu 0-0,03 mg/l 0-1 mg/l PowerMon Kolorimeter Discharge monitoring

Conductivity 0 - 2.000 µS/cm 0 - 80.000 µS/cm Inductive conductivity General water quality
sensor parameter
Cyanide
free or total CN- 0 - 0,050 mg/l 0 – 3 mg/l PowerMon Kolorimeter Electroplating
Noble metals

Fluoride F- 0-1 mg/l 0-500 mg/l PowerMon Ionometer Final effluent

Nickel Ni 0,01 - 0,2 mg/l 0,7 – 10 mg/l PowerMon Kolorimeter Steel industry

Nitrate NO3- 0 – 0,1 mg N/l 0 – 200 mg N/l PowerMon Ionometer Sewage treatment
PowerMon Kolorimeter Surface water
UV-Vis Spektrometersonde

Nitrite NO2- 0 – 0,03 mg N/l 0 – 20 mg/l PowerMon Kolorimeter Sewage treatment

Organic carbon
DOC/ TOC/TC 0-5 mg/l 0-50.000 mg/l PowerMon Ionometer Sewage treatment
Soft drinks

Dairy Airports
Peracetic acid
CH4COOOH 0-50 mg/l 0-5000 mg/l PowerMon Titrometer Food

Phosphate PO43- 0 - 0,1 mg P/l 0 - 40 mg P/l PowerMon Kolorimeter Sewage treatment
Surface water

Total
Phosphorus P 0 - 0,5 mg/l 0 - 40 mg/l PowerMon Kolorimeter Sewage treatment
Surface water

Oxygen O2 0-20 mg/l 0-20 mg/l Clark- or. Sewage treatment
Electroplating sensor Aquaculture
Water quality

pH 2 - 12 2 - 12 ISFET Sensor General water quality

Phenol
C6H5OH 0-0,1 mg/l 0-100 mg/l PowerMon Kolorimeter Gas works
Petroleum

Redox -2.000 - 2.000 mV -2.000 - 2.000 mV Redox Sensor On-line monitoring

Sulfide S2- 0 - 1 mg/l 0 - 200 mg/l PowerMon Kolorimeter Gas works
PowerMon Titrometer

Temperature -4 - 30°C -4 - 115°C NTC Sensor Sewage treatment

Turbidity 2 - 1.000 FNU 2 - 1.000 FNU IR-LED, nephelometric Final discharge

Many more parameters and ranges are available.

Analyzers in Water Treatment - Applications

Parameter* Minimum range* Maximum range* Bran+Luebbe Monitor Application

Acid capacity
p-value
m-value 0 – 0.5 mmol/L 0 – 20 mmol/L PowerMon Titrometer Drinking water

Aluminum Al3+ 0 – 0.1 mg/L 0 - 1 mg/L PowerMon Kolorimeter Drinking water

Ammonium NH+4 0 – 0.1 mg/L 0 – 5 mg/L PowerMon Kolorimeter Drinking water

Boron H3BO3 0 – 10 g/L 0 – 20 g/L PowerMon Titrometer Cooling water
monitoring in atomic power stations

Chlorine
free or total Cl2 0 – 0.2 mg/L 0 – 3 mg/L PowerMon Kolorimeter Drinking water

Chlorine dioxide
ClO2 0 – 0.2 mg/L 0 – 1 mg/L PowerMon Kolorimeter Drinking water

Chloride Cl- 0 – 0.1 mg/L 0 – 3.000 mg/L PowerMon Ionometer Ultra-pure water Drinking water

Color Hazen 0 – 1 mg/L 0 – 500 mg/L PowerMon Kolorimeter
ISIS II(inline probe) Drinking water

Copper Cu 0 – 0.03 mg/L 0 – 1 mg/L PowerMon Kolorimeter Boiler water
Surface water

CO2 CO2 0 – 20 mg/L 0 – 500 mg/L PowerMon Ionometer Drinking water
Mineral water

Fluoride F- 0 – 1 mg/L 0 – 500 mg/L PowerMon Ionometer Drinking water

Hardness 0 – 0.025 mmol/L 0 – 5 mmol/L PowerMon Titrometer Water monitoring
Drinking water

Hydrazine N2H4 0 – 0.1 mg/L 0 – 2 mg/L PowerMon Kolorimeter Boiler water

Iron Fe2+/3+ 0 – 0.02 mg/L 0 – 5 mg/L PowerMon Kolorimeter Boiler water
Drinking water

Manganese Mn 0 – 0.1 mg/L 0 – 2 mg/L PowerMon Kolorimeter Drinking water

Nitrite NO-2 0 – 0.1 mg/L 0 – 3 mg/L PowerMon Kolorimeter Mineral water
Spring water

Oxygen O2 0 – 20 mg/L 0 – 20 mg/L Clark or galvanic sensor Water
preparation

pH 2 - 12 2 - 12 ISFET Sensor Water quality

Potassium K+ 0 – 10 mg/L 0 – 100 mg/L PowerMon Ionometer Water monitoring

Silicate SiO2 0 – 0.005 mg/L 0 – 100 mg/L PowerMon Silikometer Ultra-pure water monitoring
Boiler water

Sodium Na+ 0 – 0.002 mg/L 0 – 1 mg/L PowerMon Natriometer Ultra-pure water monitoring Cooling water

Peroxide H2O2 0 – 0.1 mmol/L 0 – 40 mmol/L PowerMon Titrometer Drinking water

Many more parameters and ranges are available.
